主要技術參數 Main Technical Specification

項目 Items

參數 Parameter

整機質量 Overall weight

85t

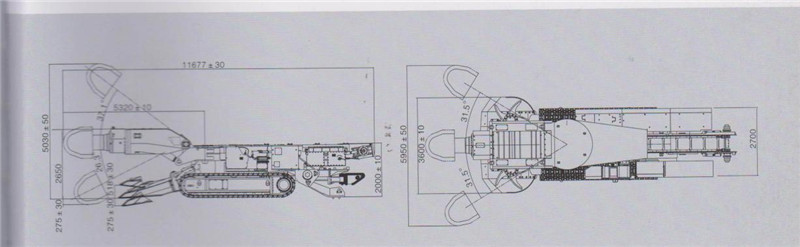

外形尺寸Overall

dimension

長 length

11677mm

寬 Width

鏟板 Shovel plate

3600/3200/3000/2800mm

機身 Main body

2700mm

高 Height

截制頭水平放置最高點 Cutting head is laid horizontally on the highest point

2650mm

機身 Main body

2000mm

臥底深度 Undercut depth

275mm

地隙 Ground clearance of machine

260mm

定位切割范圍Range of

positioning cutting

高度 Height

5030mm

寬度 Width

5950mm

面積 Area

30m2

龍門高度mm Gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

7m/min

接地比壓 Grounding pressure

0.165MPa

總功率 Gross power

410.5kW

切割電機功率 Power of Cutting motor

260/200kW

泵站電機功率 Power of electric pump motor

132kW

供電電壓 Input voltage

AC1140V

供電頻率 Input frequency

50Hz

切割頭轉速 Rotation speed of cutting head

54/27r/min

裝載能力 Loading capacity

星輪式 Star wheel type/4.3 m3/min

履帶寬度 Crawler width

650mm

履帶外寬 Out.width of crawlers

2700mm

漲緊形式 Tensioning style

油缸漲緊、卡板鎖緊 Cylinder tensioning and snap-gauge locking

噴霧水壓 Water pressure of spraying

外噴霧水壓 Water pressure of outside spraying≥4MPa

內噴霧水壓 Water pressure of inside spraying≥2MPa

最大不可拆卸件尺寸 Max.non-removable parts size

3.755×1.5×1.47m

最大不可拆卸件質量 Max. non-removable parts mass

8700kg
